Specify your selection below and add the product to your quote page.

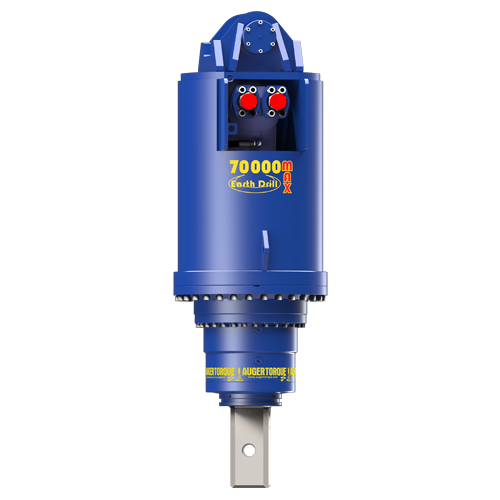

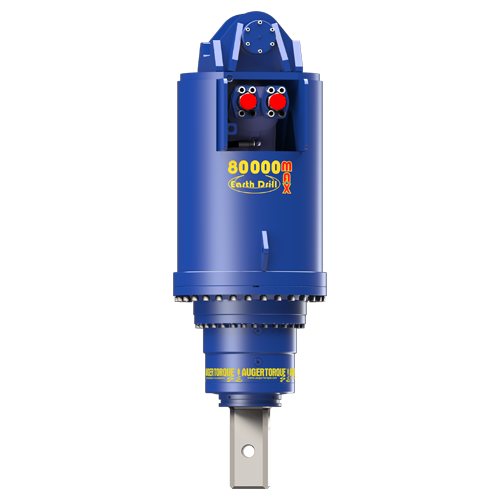

Earth Drills For Excavators 21T–45T (Up to 80898Nm)
The 70,000 & 80,000 Max Earth Drills are the ideal solution for high torque applications on excavators from 21 to 45T.
-
Lightweight design under 800kg enhances versatility without sacrificing durability.
-
Built with high-quality hydraulic motors for consistent, powerful performance.
-
Features output shaft bearings 50% larger than those of leading competitors.
-
Manufactured using premium materials and advanced production techniques.
-
Includes our original single-piece non-dislodgement shaft as a standard safety feature.
-
Lifetime warranty on the non-dislodgement shaft for long-term peace of mind.
-
Equipped with a robust 130mm square or hex shaft for demanding applications.
Earth Drills For Excavators 21T–45T (Up to 80898Nm)
The 70,000 & 80,000 Max Earth Drills are the ideal solution for high torque applications on excavators from 21 to 45T.
-
Lightweight design under 800kg enhances versatility without sacrificing durability.
-
Built with high-quality hydraulic motors for consistent, powerful performance.
-
Features output shaft bearings 50% larger than those of leading competitors.
-
Manufactured using premium materials and advanced production techniques.
-
Includes our original single-piece non-dislodgement shaft as a standard safety feature.
-
Lifetime warranty on the non-dislodgement shaft for long-term peace of mind.
-
Equipped with a robust 130mm square or hex shaft for demanding applications.
You may also like…
-
Earth Drills For Excavators 750kg–3T (Up to 2847Nm)
View Product -
Earth Drills For Excavators 2T–5T (Up to 4499Nm)
View Product -
Earth Drills For Excavators 4.5T–8T (Up to 8152Nm)
View Product -
Earth Drills For Excavators 8T–15T (Up to 15071Nm)
View Product -
Earth Drills For Excavators 12T–22T (Up to 24755Nm)
View Product -
Earth Drills For Excavators 20T–45T (Up to 66589Nm)
View Product -
Earth Drills For Excavators 21T–45T (Up to 80898Nm)
View Product -
Earth Drills For Excavators 21T–50T (Up to 152319Nm)
View Product -
Earth Drills For Mini Loaders (Up to 2847Nm)
View Product -
Earth Drills For Skid Steer Loaders Up to 80HP (Up to 4499Nm)
View Product -
Earth Drills For High Flow Skid Steer Loaders & Telehandlers (Up to 8152Nm)
View Product -
Earth Drills For Backhoes (Up to 1507Nm)
View Product -
Earth Drills For Truck Cranes (Up to 6819Nm)
View Product -
Earth Drill Range: Hitches and Frames
View Product
-
SPECIFICATIONS
MODEL 70000 MAX 80000 MAX Carrier Weight 21-45t 21-45t Oil Pressure Range 160 - 300 Bar 160 - 280 Bar Torque Range 38016 - 71280 Nm 46227 - 80898 Nm Oil Flow Range 100 - 280 lpm 100 - 280 lpm Speed Range 7 - 9 rpm 9 - 15 rpm Hub Options 130mm Square
130mm Hex (optional)
(Output shaft adaptors available)
130mm Square
130mm Hex (optional)
(Output shaft adaptors available)
Height 1625 mm 1625 mm Width 524 mm 524 mm Weight 750kg 760kg Hitch Options Double Pin Cradle Double Pin Cradle Valve Options 2 Way Valve - Converts single acting hammer into a 2 way auxiliary flow. 2 Way Valve - Converts single acting hammer into a 2 way auxiliary flow. Auger Range PA TBC Rec. Drilling Diameter Range 300 - 2400 mm TBC
-
