Earth Drill Range: For Excavators 12T to 22T

Earth Drill Range: For Excavators 12T to 22T

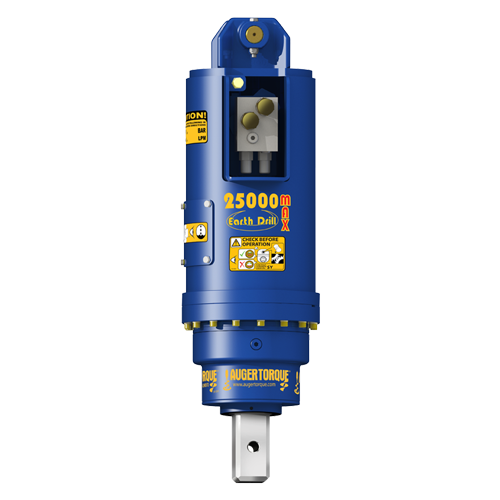

The Earth Drills 20,000 MAX and 25,000 MAX are the perfect choice for excavators between 12T-22T.

Over-engineered and built to last these products give you the versatility, peace of mind and quality you expect from Auger Torque products. A 2-Way Valve is an optional extra on this series of Earth Drills and enables you to convert a single acting hammer circuit into 2-way auxiliary flow. An optional Pressure Relief Valve is available, to safeguard your investment by protecting the hydraulic motor from backpressure and hydraulic pressure spikes. High quality hoses are standard with this series of Earth Drills, hydraulic quick couplers are not included as we recommend direct plumbing to avoid flow restriction and to ensure optimal performance. Although designed for large excavators these drives are the ideal drive for high torque anchor applications and also suitable to smaller machines.

Clear
SKU: N/A Category:

You may also like…

  • FEATURES

  • SPECIFICATIONS

    MODEL20000 MAX25000 MAX
    Oil Pressure Range160 - 240 Bar160 - 240 Bar
    Torque Range13043 - 19564 Nm16503 - 24755 Nm
    Oil Flow Range80 - 170 lpm * 80 - 170 lpm *
    Speed Range16 - 33 rpm12 - 26 rpm
    Hub Options75mm Square75mm Square
    Height1130 mm1130 mm
    Width345 mm345 mm
    Weight268kg269kg
    Hitch OptionsSingle Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Auger RangeS6S6
    Rec. Drilling Diameter Range150 - 1000 mm 150 - 1500 mm
    * Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
