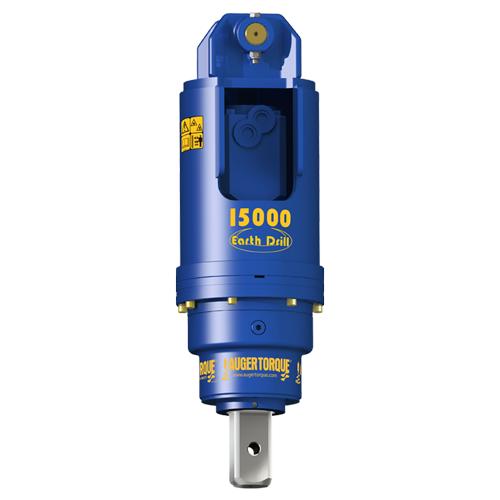

Earth Drill Range: For Backhoes

Earth Drill Range: For Backhoes

The Earth Drill 7000 MAX to 15,000 MAX’s are the perfect choice for backhoes.

The backhoe range of Auger Torque Earth Drills gives you peace of mind and efficiency, with the versatility to easily switch between attachments depending on the job at hand. High quality hydraulic motors, output shaft bearings which are 50% larger than our nearest competitors comparable drive, the use of only high-grade materials and the latest manufacturing techniques mean that the this earth drill will give you the long, reliable service life you need. The 2-Way Valve is an optional extra on this series of Earth Drills and will enable you to convert a single acting hammer circuit into 2-way auxiliary flow.

Clear
SKU: N/A Category:

You may also like…

  • FEATURES

  • SPECIFICATIONS

    MODEL7000 MAX8000 MAX100001200015000
    Oil Pressure Range80 - 260 Bar80 - 260 Bar80 - 260 Bar80 - 240 Bar80 - 240 Bar
    Torque Range2133 - 6931 Nm2717 - 8152 Nm3281 - 10662 Nm4203 - 12610 Nm5024 - 15071 Nm
    Oil Flow Range60 - 135 lpm70 - 150 lpm70 - 150 lpm70 - 150 lpm70 - 150 lpm
    Speed Range36 - 81 rpm33 - 70 rpm27 - 58 rpm21 - 45 rpm18 - 38 rpm
    Hub Options75mm Square75mm Square75mm Square75mm Square75mm Square
    Height780 mm780 mm883 mm883 mm883 mm
    Width269 mm269 mm290 mm290 mm290 mm
    Weight112kg116kg162kg162kg162kg
    Hitch OptionsSingle Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Auger RangeS5S5S6S6S6
    Rec. Drilling Diameter Range150 - 900 mm 150 - 1200 mm 150 - 900 mm150 - 1000 mm 150 - 1200 mm
