Earth Drill Range: Hitches and Frames

Earth Drill Range: Hitches and Frames

Auger Torque has hitch & frame options to suit all types of machines, need and applications.

All hitches & frames are fabricated in house to the highest standards using only the highest-grade steel. Many frames and hitches are kept in stock for quick delivery and where required we are can custom fabricate to meet your needs. From cost effective hitches for excavators and backhoes, through to double pin hitches and double pin cradle hitches to suit larger drives and all types of parent machine. With frames compatible with mini loaders, skid steers and telehandlers, you have the ultimate in flexibility for pairing your parent machine with attachments.

SKU: N/A Category:

You may also like…

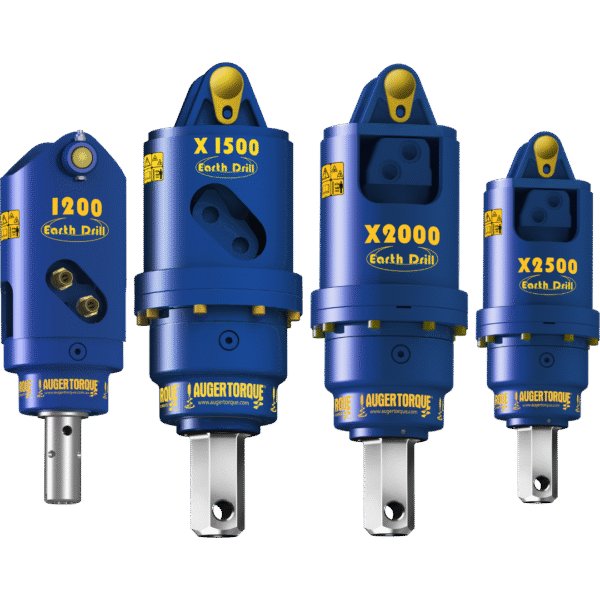

  • Earth Drill Range: Mini Excavators 750kg to 3T

    View Product

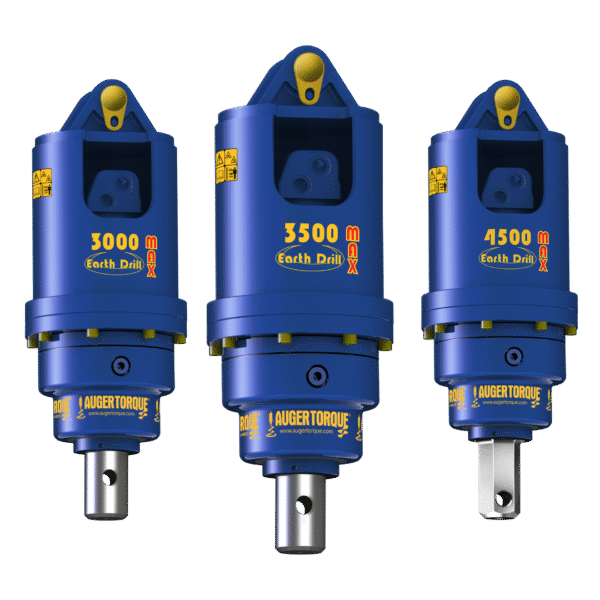

  • Earth Drill Range: Mini Excavators 2T to 5T

    View Product

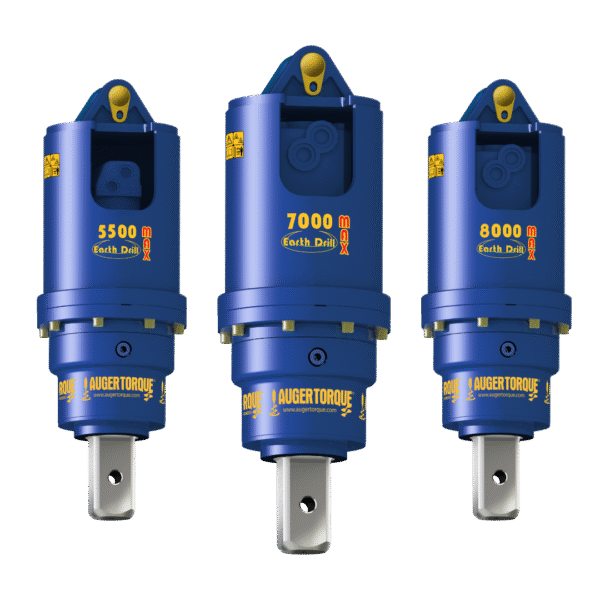

  • Earth Drill Range: For Excavators 4.5T to 8T

    View Product

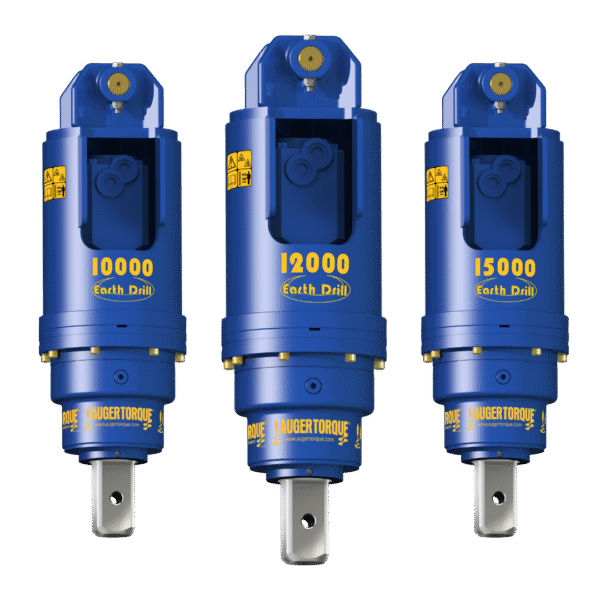

  • Earth Drill Range: For Excavators 8T to 15T

    View Product

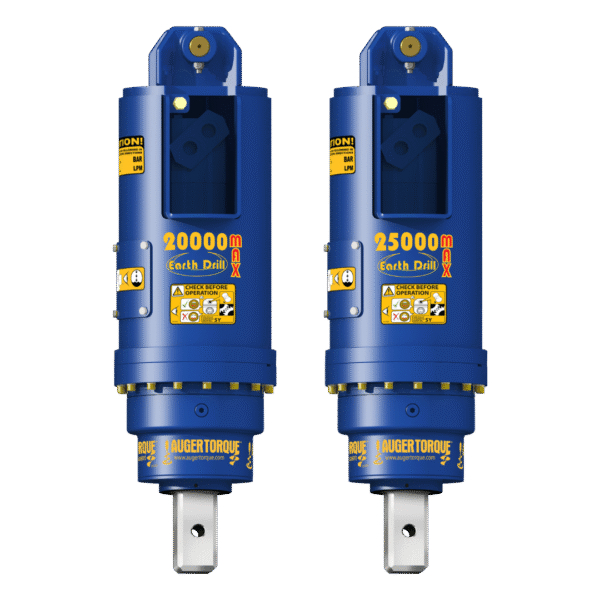

  • Earth Drill Range: For Excavators 12T to 22T

    View Product

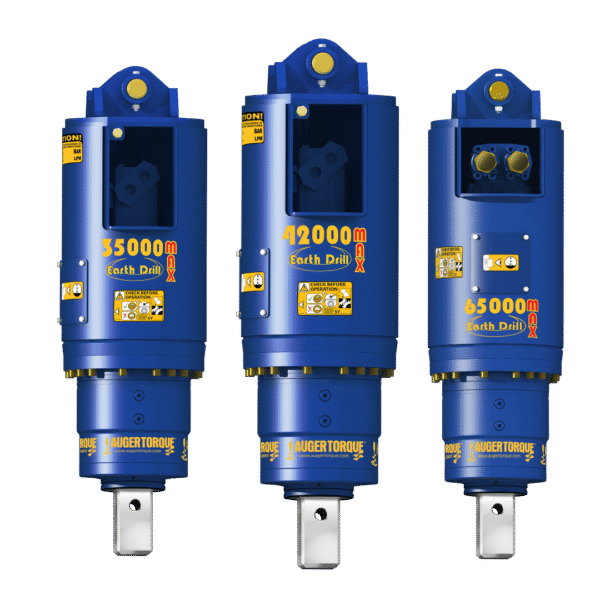

  • Earth Drill Range: For Excavators 20T to 45T

    View Product

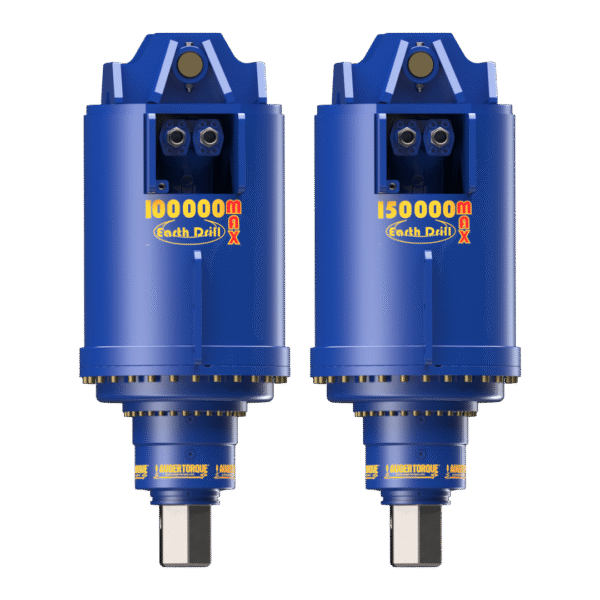

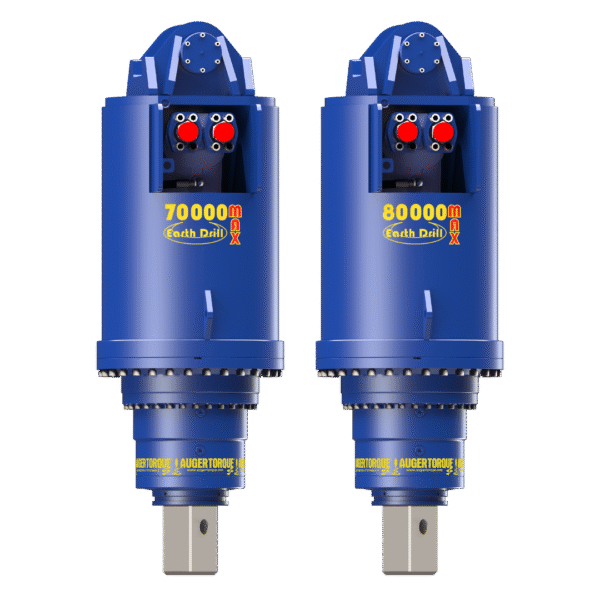

  • Earth Drill Range: For Excavators 21T to 50T

    View Product

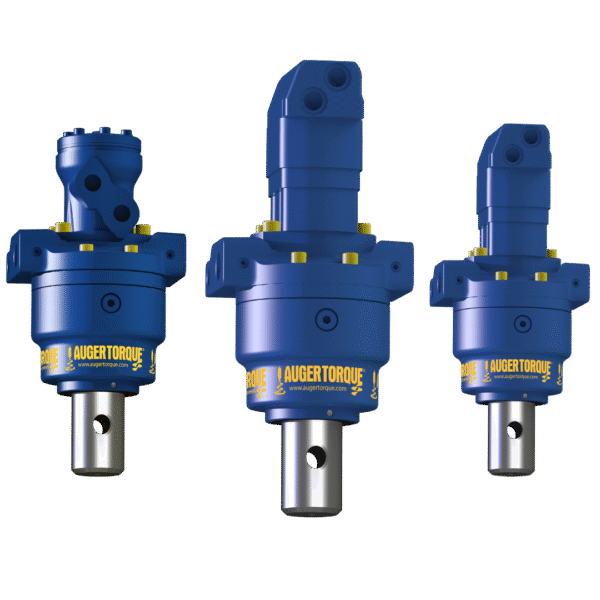

  • Earth Drill Range: For Mini Loaders

    View Product
  • Earth Drill Range: Skid Steer Loaders to 80HP

    View Product
  • Earth Drill Range: for High Flow Skid Steer Loaders & Telehandlers

    View Product

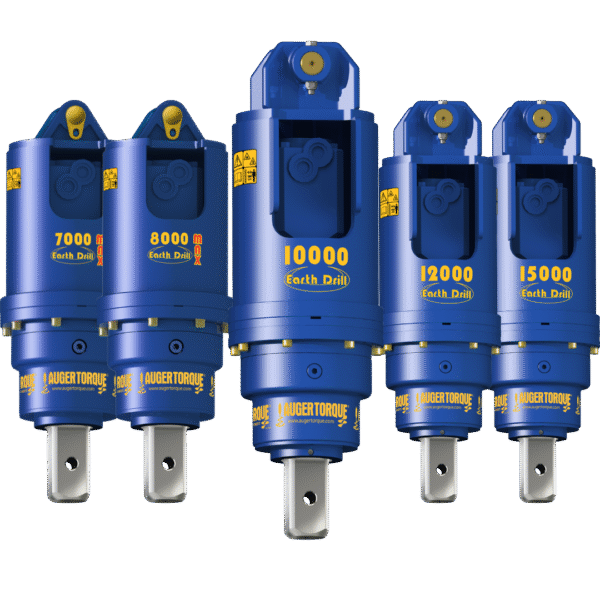

  • Earth Drill Range: For Backhoes

    View Product
  • Earth Drill Range: For Truck Cranes

    View Product
  • SPECIFICATIONS

    Hitches

    When ordering hitches, please supply your pin diameter, dipper width and distance between pin centres, for your convenience you can download our hitch specification form in the document resources below.

    SINGLE PIN EARTH DRILL HITCHDOUBLE PIN EARTH DRILL HITCHDOUBLE PIN CRADLE EARTH DRILL HITCHDOUBLE PIN CRADLE MIXER HITCHTRUCK CRANE ROPE WIND EARTH DRILL HITCH
    The single pin earth drill hitch is the most basic and most cost-effective hitch option Auger Torque offers and is suitable for excavators and backhoes and available for Earth drills from 1200 to 50,000 MAX.

    ** Not compatible with hydraulic quick hitches, select a double pin hitch or double pin cradle hitch with your earth drill package instead.
    The double pin earth drill hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes. This hitch is suitable for earth drills from 1200 to 25,000 MAX. The double pin cradle earth drill hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes. This hitch is suitable for earth drills from X1500 to 50,000 MAX. The use of a cradle hitch is recommended, as it will eliminate auger swing during dirt shake off, will enable you to safely transport your attachments and will assist in lining up your holes with precision. No mechanical parts or dampers mean that even if your earth drill and hitch have a tough life ahead of them you will not have to worry about costly replacements or breakdowns.The double pin cradle mixer hitch can be supplied in both loose and fixed pin versions to suit standard and quick hitch solutions on most excavators & backhoes. This hitch is suitable for earth drills from X1500 to 8000 MAX. This hitch is very similar to our regular cradle hitch, eliminating auger swing during dirt shake off, enabling you to safely transport your attachments and will assist in lining up your holes with precision. This unique design will enable you to use your earth drill to as a concrete mixer with use of our mixing bowls. No mechanical parts or dampers mean that even if your earth drill and hitch have a tough life ahead of them you will not have to worry about costly replacements or breakdowns.The truck crane rope wind earth drill hitch is an effective solution for transporting an earth drill on a truck crane. Utilising the rotation of the earth drill, the unit can be lifted under the boom of the crane after use and locked into position, making the whole unit secure during travel. This hitch is compatible with earth drills 3000TC, 5500TC & 7000TC and for truck cranes between 9-18T/metre.

    Frames

    MINI LOADER 2-WAY SWING
    EARTH DRILL FRAME
    SKID STEER & TELEHANDLER CENTRE MOUNT
    EARTH DRILL FRAME
    SKID STEER & TELEHANDLER SIDE SHIFT
    EARTH DRILL FRAME
    The mini loader 2-way swing earth drill frame is available for most mini loader makes and models on the market. This frame is suitable with earth drills ML1500, ML2000 and ML2500. The unique design allows rapid change over from the drilling position to the mixing position allowing you to maximise the versatility of your mini loader with the use of an Auger Torque mixing bowl.
    The Telehandler & Skidsteer Centre Mount Earth Drill Frames are compatible with earth drills from 3000 MAX 8000 MAX.The Telehandler & Skid Steer Side Shift Earth Drill Frames are compatible with earth drills from 3000 MAX to 8000 MAX. The construction of this frame is very similar to the centre mount frame above, however you are able to shift your earth drill from one side to the other to enable you to get into those tight spots on site. As an optional extra you may also purchase a mixing bowl cradle to suit this frame allowing you to maximise the versatility of your machine with the use of an Auger Torque mixing bowl.
