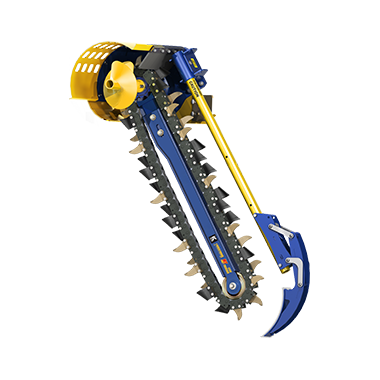

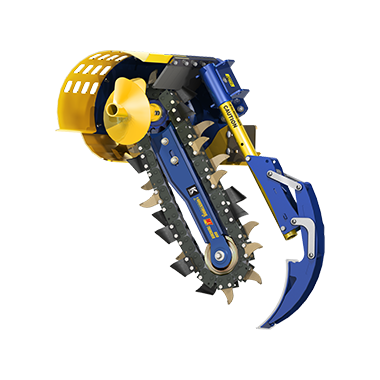

Trenchers for Excavators 2.5T-5T, 80HP Skid Steer Loaders & Mini Loaders

The Auger Torque MT Range of trenchers are designed for Excavators between 2.5T-5T, Skid Steer Loaders up to 80hp and also Mini Loaders.

With only the highest quality hydraulic motors and using Auger Torque’s own planetary gearbox, our trenchers have the reliability and power to ensure your trenching is carried out with ease. Chains are available in several different tooth configurations, whether you’re trenching in soft ground, mixed grounds or even permafrost allowing you to get the job done no matter what environment you are in. With the precision depth control skid the operator can accurately set the desired trench depth and be sure of accuracy for the entire length.

SKU: N/A Category:
Helper Text Need help choosing the correct model. See the specifications section below for more information.

Trenchers for Excavators 2.5T-5T, 80HP Skid Steer Loaders & Mini Loaders

Trenchers for Excavators 2.5T-5T, 80HP Skid Steer Loaders & Mini Loaders

The Auger Torque MT Range of trenchers are designed for Excavators between 2.5T-5T, Skid Steer Loaders up to 80hp and also Mini Loaders.

With only the highest quality hydraulic motors and using Auger Torque’s own planetary gearbox, our trenchers have the reliability and power to ensure your trenching is carried out with ease. Chains are available in several different tooth configurations, whether you’re trenching in soft ground, mixed grounds or even permafrost allowing you to get the job done no matter what environment you are in. With the precision depth control skid the operator can accurately set the desired trench depth and be sure of accuracy for the entire length.

SKU: N/A Category:

You may also like…

  • Trenchers for Excavators 5T-10T, High Flow Skid Steer Loaders & Backhoes

    View Product

  • Trencher Wear Parts

    View Product

  • Trencher Hitches and Frames

    View Product

  • FEATURES

    • HIGH QUALITY MOTOR AND GEARBOX

      Using only the highest quality hydraulic motors that allow flow rates of up to 150LPM and then amplified by Auger Torque’s own ‘bullet-proof’ planetary gearbox means that our trenchers have the reliability you need and the power to ensure your trenching is carried out with ease.

    • EPICYCLIC GEARBOX

      Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

    • HOSE & ADAPTOR OPTIONS

      All Trenchers are supplied as standard with high quality hoses and adaptors.

    • MULTIPLE TEETH COMBINATIONS

      Chains are available in a number of different teeth configurations for trenching in soft ground, mixed grounds and even permafrost, allowing you to get the job done quickly.

    • ADJUSTABLE DEPTH SKID

      A great feature that will make your job much easier is the precision depth control skid, which enables the operator to set the machine at up to three different trench depths.

    • RAPID CHAIN ADJUSTMENT

      The length of the chain can be quickly adjusted with the removal of a screw to move the boom.

  • SPECIFICATIONS

    MODELMT 600 TRENCHERMT 900 TRENCHERMT 1200 TRENCHER
    Suitable forEXCAVATORS 2.5 - 4.5T & SKIDSTEER LOADERS
    For Trenches 100-300mm Width    		EXCAVATORS 3 - 5T & SKIDSTEER LOADERS
    For Trenches 100-300mm Width    		LOW FLOW SKIDSTEER LOADERS
    Up to 80HP
    Oil Pressure Range160-240 Bar180-240 Bar180-240 Bar
    Oil Flow Range35-65 lpm45-80 lpm55-95 lpm
    Unit Width850mm850mm850mm
    Unit Height736mm736mm736mm
    Unit Length1465mm1800mm2100mm
    Cutting Width Range100-300mm100-300mm100-200mm
    TRENCH DEPTH CAPABILITYDEPTH ADEPTH BDEPTH C
    MT 600300mm450mm600mm
    MT 900600mm750mm900mm
    MT 1200900mm1050mm1200mm

    Chain Options

    EARTH CHAIN 150MM WIDECOMBINATION CHAIN 150MM WIDETUNGSTEN CHAIN 150MM WIDE
    CHAIN WIDTH OPTIONS100MM150MM200MM250MM300MM
    MT 600 Earth 44-2901 44-2903 44-2905 44-2940 44-2936
    MT 600 Combination44-2902 44-2904 44-2906 44-2919 44-2937
    MT 600 Tungsten44-2918 44-2913 44-2914 44-2945 44-2938
    MT 900 Earth 44-2907 44-2909 44-2911 44-2939 44-2933
    MT 900 Combination44-2908 44-2910 44-2912 44-2915 44-2934
    MT 900 Tungsten44-2916 44-2920 44-2921 44-2941 44-2935
    MT 1200 Earth44-2924 44-2923 44-2927 --
    MT 1200 Combination44-2925 44-2922 44-2928 --
    MT 1200 Tungsten44-2926 44-2917 44-2929 --

  • Warranty

    LIFETIME WARRANTY*

    • *Lifetime Warranty against Shaft Dislodgement
    • Planetary Gearbox Components - 72 months
    • Hydraulic Motors - 36 months
    • All other Products – 24 months
    • All Other Parts / Products - 24 months

    Click here to find out more about Auger Torque’s industry leading lifetime warranty or register your product online.
